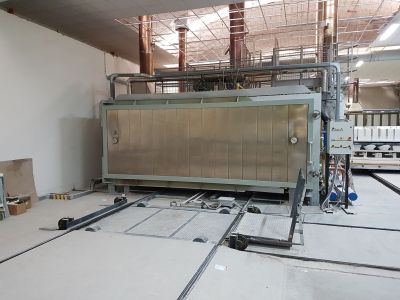

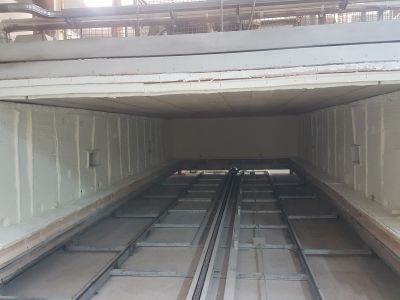

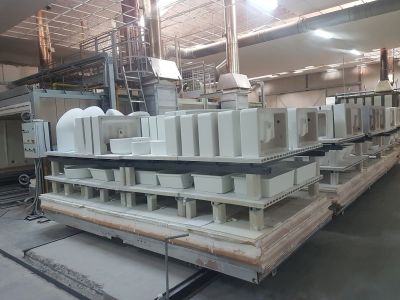

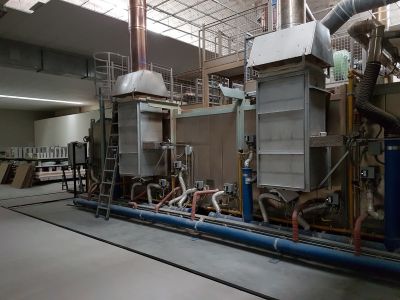

Shuttle kiln, gas heated, 28 m³, 1280 °C, used (Article number: 3021)

Shuttle kiln, gas heated, 28 m³, 1280 °C, used Shuttle kiln, gas heated, 28 m³, 1280 °C, used Shuttle kiln, gas heated, 28 m³, 1280 °C, used
Shuttle kiln, gas heated, 28 m³, 1280 °C, used
Manufacturer: EU
Type: 28 m³, 1280°C
Year of construction: 2015
Description: Manufacturer: EC
Type: Turbo compact
Year of construction: 2015
Steel shell: AISI 304 stainless steel
Lining: ceramic fibre
Useful volume: approx. 28 m³
Temperature: max. 1280 ° C
Heating: gas
Gas connection: 769,500 kcal/m³ ~ 895 kW
Number of burners: 27 pcs.
Type of burners regulation: modulating
Number of kiln elements: 5 pcs.
Dimensions (lxwxh)
Outside: approx. 9700x4910+1480x2410 + exhaust system
Useful dimensions
approx. 1500(x5)x3700x1000 mm
Useful volume kiln car: approx. 5,62 m³
Number of kiln cars: 5 pcs. inside the kiln
5 pcs. in stand by
Elektric power: approx. 12 kW
Power supply voltage: 380 V 3F+N+T 50 Hz
Main control board: ATR 620 (touch screen 10')
Recalling programs: 100
Segments per program: 100
Safety control board: ATR 141
Accessories:
- conveyor for car motorization
(inside the chamber)
- rail system and transfer car (manual)
- additional cooling system
- operator platform to the exhaust system
CE-Certificate
Condition: used
Quantity: 1 Pcs.
Data in accordance with manufacturer
Shuttle kiln, gas heated, 28 m³, 1280 °C, used Shuttle kiln, gas heated, 28 m³, 1280 °C, used Shuttle kiln, gas heated, 28 m³, 1280 °C, used Shuttle kiln, gas heated, 28 m³, 1280 °C, used
